ECG Machines
Our electrocardiograph machines are essential diagnostic tools for cardiologists and general physicians, widely used for routine cardiac assessments. Designed for ease of use and high precision, they enable accurate diagnosis and efficient analysis. ECG machines are available in a range of models to meet diverse clinical needs and patient requirements.

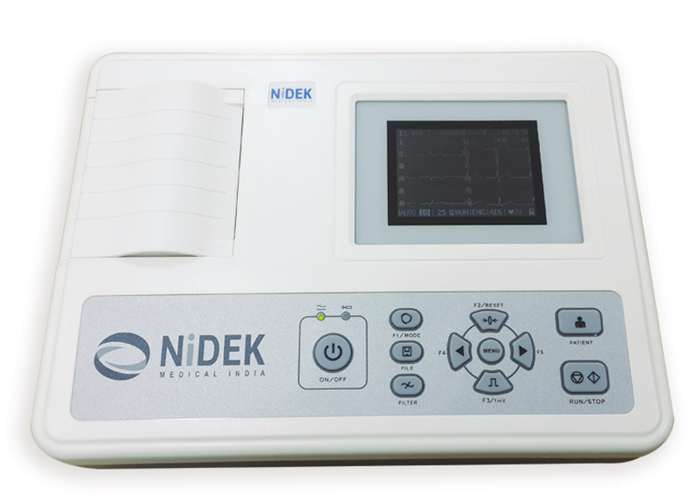

ECG-701
Product Features
- Single Channel ECG machine with measurement
- Manual / Auto / Arrhythmia Analysis Modes.
- Built in rechargeable NI-MH battery.
- Adapt to 110 – 230V, 50 / 60 Hz, AC power supply.
- Built in RS232 interface (ECG NET Software optional
| Display: | LCD 3.5″, 320 x 240 |
| Paper: | 50mm x 20mm roll paper |
| Battery: | 12V (1500 mAH) Ni-MH battery |
| Dimensions: | 300mm x 230mm x 72mm |

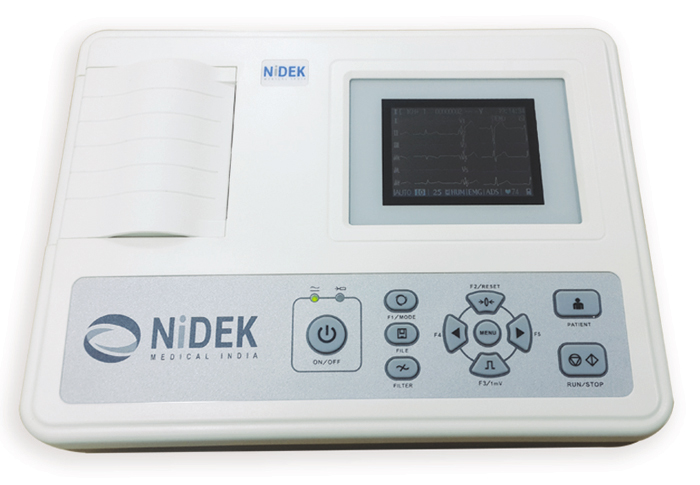

ECG-703
Product Features
- 3 Channel ECG machine with Interpretation
- Manual / Auto / Arrhythmia Analysis Modes.
- 80mm 3 Channel recording with rhythm lead
- Built in rechargeable Ni-MH battery.
- Real-time ECG waveform, cases save / replay
- Adapt to 110 – 230V, 50 / 60 Hz, AC power supply .
- Built in USB / RS232 interface
| Display: | LCD 3.5″, 320 x 240 |
| Paper: | 80mm x 20mm roll / fold paper |
| Battery: | 12V (1500 mAH) Ni-MH battery |
| Dimensions: | 300mm x 230mm x 72mm |

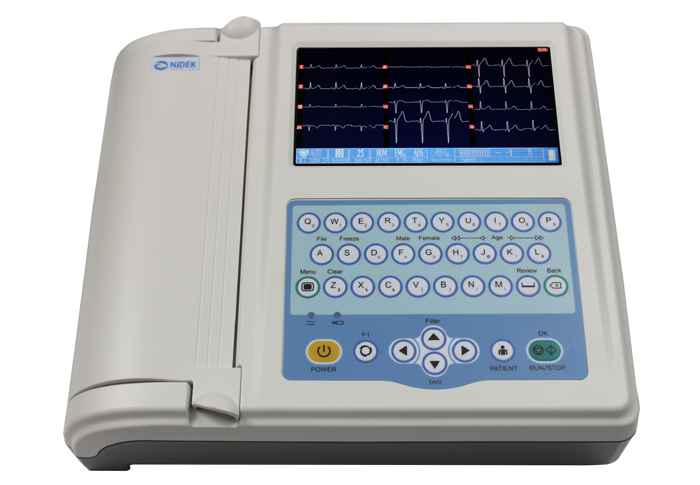

ECG-712
Product Features
- Portable 12 Channel ECG machine
- Manual / Auto / Arrhythmia Analysis Modes
- 7 inch LCD
- Alphabetic keyboard for patient information
- Built in rechargeable Li-Ion battery
- Real-time ECG waveform, cases save / replay
- Adapt to 110 – 230V, 50 / 60 Hz, AC power supply
- Built in USB / RS232 interface
| Display: | LCD 7″, 800 x 480 |
| Paper: | 210mm x 216mm/20m roll paper |
| Battery: | 14.4V (4400 mAH) Li-lon battery |
| Dimensions: | 320mm x 270mm x 66mm |
